Spread for Winforms provides support for adding and customizing shapes and group shapes in the worksheets. Shapes are compatible with Excel and with all built-in shapes. Users can copy shapes from Excel to Spread and vice a versa.

Enable Shape Engine

The new shape engine is not enabled by default. Users must use the following code to manually turn it on before working with shapes in the spreadsheets:

// Enable the shape engine
fpSpread1.Features.EnhancedShapeEngine = true;

Grouping and Ungrouping Shapes

Users can group or ungroup shapes and move or rotate the grouped shapes just like in Excel by using the Group() method of the IShapeRange interface and the Ungroup() method of the IShapeBase interface.

Group shapes are generated when multiple drawing objects are clustered together in a spreadsheet. It is beneficial to use group shapes in a scenario wherein the spreadsheet contains multiple shapes and users need to optimize the entire execution of similar kind of tasks executed on those shapes (like adding similar kind of style to two or more shapes, rotating or moving them together). This will ensure that the desired consistency is maintained in all the shapes. While working with shapes in Spread WinForms Designer, users can use the ribbon bar to change the text settings for the shape.

Example - For instance, let's say you want to rotate or move two or more shapes inserted in a worksheet. One way to do this would be to rotate each shape individually by setting its rotation angle. However, this task can become too cumbersome and time consuming to handle manually especially when there are multiple shapes in the worksheet. Instead, you can simply group two or more shapes in the worksheet and rotate the grouped shape as depicted in the image shared below.

The following example code shows how to add multiple shapes and group/ungroup the shapes embedded in the spreadsheet.

// Add Multiple Shapes in activeSheet using AddShape() method
fpSpread1.AsWorkbook().ActiveSheet.Shapes.AddShape(AutoShapeType.Rectangle, 10, 10, 100, 100);
fpSpread1.AsWorkbook().ActiveSheet.Shapes.AddConnector(ConnectorType.Straight, 110, 100, 200, 200);
fpSpread1.AsWorkbook().ActiveSheet.Shapes.AddShape(AutoShapeType.Rectangle, 200, 200, 100, 100);

// Group Shapes using Group() method.
IGroupShape groupShape = fpSpread1.AsWorkbook().ActiveSheet.Shapes.Range(new int[] { 0, 1, 2 }).Group();

// Ungroup Shapes using Ungroup() method.
groupShape.Ungroup();

Binding Shape Properties

Users can bind the shape properties to the cell and set property bindings to add additional functionalities to the shapes.

For example - In the following image, a rectangular shape has been added in the worksheet and then the binding operation has been done on the shape to change its color (defined in cell A1) and value (defined in cell A2) at runtime as shown in the image shared below.

The following example code binds the shapes in the spreadsheet with different properties.

// Binding Shapes with different properties
// Set cell values
fpSpread1.ActiveSheet.Cells[0, 0].Value = "Red";
fpSpread1.ActiveSheet.Cells[1, 0].Value = 165;

// Add a rectangle shape
var rectangle = fpSpread1.AsWorkbook().ActiveSheet.Shapes.AddShape(AutoShapeType.Rectangle, 118.5, 53.25, 151.5, 114);
// Binding shape properties with cell A1 & A2 values
// If cell A1 & A2 values are changed at runtime then it is reflected back in shape too
rectangle.Bindings.Add(nameof(IShape.Fill), "A1");
rectangle.Bindings.Add("Rotation", "A2");

Shape Fills and Effects

While working with shapes in spreadsheets, users can also customize the fill format (solid fill, pattern fill, gradient fill, and texture fill etc.), modify the shape lines (solid and gradient lines), shape text and shape effects (inner shadow, outer shadow, glow, soft edge, reflection) along with a lot of other predefined settings.

The following image depicts two shapes - one rectangle and other octagon with different gradient settings applied to them.

The following code shows how to customize shape fill in the spreadsheet.

// Add a rectangle shape
var rectangle = fpSpread1.AsWorkbook().ActiveSheet.Shapes.AddShape(AutoShapeType.Rectangle, 118.5, 53.25, 151.5, 114);

// Set shapes PresetGradient with GradientStyle
rectangle.Fill.PresetGradient(GradientStyle.Horizontal, 3, 0);

// Add an Octagon shape
var Octagon = fpSpread1.AsWorkbook().ActiveSheet.Shapes.AddShape(AutoShapeType.Octagon, 258.5, 203.25, 151.5, 114);

// Set shapes OneColorGradient with GradientStyle
Octagon.Fill.OneColorGradient(GradientStyle.Horizontal, 3, 0);

// Set Shape's texture with Image
shapes.Fill.UserTextured(@"..\..\\GrapeCity_Logo.png");
shapes.Fill.TextureAlignment = GrapeCity.Drawing.RectAlignment.TopLeft;

// Set shapes PresetGradient with GradientStyle
rectangle.Fill.PresetGradient(GradientStyle.Horizontal, 3, 0);

// Set shapes OneColorGradient with GradientStyle
Octagon.Fill.OneColorGradient(GradientStyle.Horizontal, 3, 0);

// Set Shape's texture with Image
shapes.Fill.UserTextured(@"..\..\\GrapeCity_Logo.png");
shapes.Fill.TextureAlignment = GrapeCity.Drawing.RectAlignment.TopLeft;

Drag and Copy Shapes

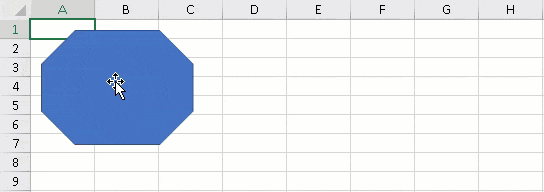

Users have the ability to move or copy a shape by holding the right-mouse button and dragging shapes to the target location. A context-menu pops up after releasing the mouse button and shows the option to move or copy the shape.

You can also customize the above context menu by accessing it through the ContextMenuType.ShapeDrag enumeration option. The following image illustrates a customized context menu where the "Move" option is hidden and a new item has been added.

The following code shows how to access and customize the shape drag context menu.

private void ShapeContextMenu_Load(object sender, EventArgs e)
{
    // Enable the shape engine
    fpSpread1.Features.EnhancedShapeEngine = true;
    var worksheet = fpSpread1_Sheet1.AsWorksheet();

    // Add shape in worksheet
    worksheet.Shapes.AddShape(GrapeCity.Spreadsheet.Drawing.AutoShapeType.Octagon, 10, 10, 151.5, 114);

    // Capture BeforeRightClick event
    fpSpread1.BeforeRightClick += OnBeforeRightClick;
}

private void OnBeforeRightClick(object sender, FarPoint.Win.Spread.BeforeRightClickEventArgs e)
{
    if (e.ContextMenuType == FarPoint.Win.Spread.ContextMenuType.ShapeDrag)
    {
        GrapeCity.Spreadsheet.Drawing.IShapeRange movingShapes = (GrapeCity.Spreadsheet.Drawing.IShapeRange)sender;

        // To remove context menu
        // e.ContextMenuStrip = null;

        // To remove item from context menu
        e.ContextMenuStrip.Items[0].Visible = false;

        // To add a new item in context menu
        e.ContextMenuStrip.Items.Add("New Item Added");
    }
}

Private Sub ShapeContextMenu_Load(sender As Object, e As EventArgs) Handles MyBase.Load

    'Enable the shape engine
    FpSpread1.Features.EnhancedShapeEngine = True
    Dim worksheet = FpSpread1_Sheet1.AsWorksheet()

    'Add shape in worksheet
    worksheet.Shapes.AddShape(GrapeCity.Spreadsheet.Drawing.AutoShapeType.Octagon, 10, 10, 151.5, 114)

    'Capture BeforeRightClick event
    AddHandler FpSpread1.BeforeRightClick, AddressOf OnBeforeRightClick
End Sub

Private Sub OnBeforeRightClick(ByVal sender As Object, ByVal e As FarPoint.Win.Spread.BeforeRightClickEventArgs)
    If e.ContextMenuType = FarPoint.Win.Spread.ContextMenuType.ShapeDrag Then
        Dim movingShapes As GrapeCity.Spreadsheet.Drawing.IShapeRange = CType(sender, GrapeCity.Spreadsheet.Drawing.IShapeRange)

        'To remove context menu
        'e.ContextMenuStrip = Nothing

        'To remove item from context menu
        e.ContextMenuStrip.Items(0).Visible = False

        'To add a new item in context menu
        e.ContextMenuStrip.Items.Add("New Item Added")
    End If
End Sub

Drawing Freeform

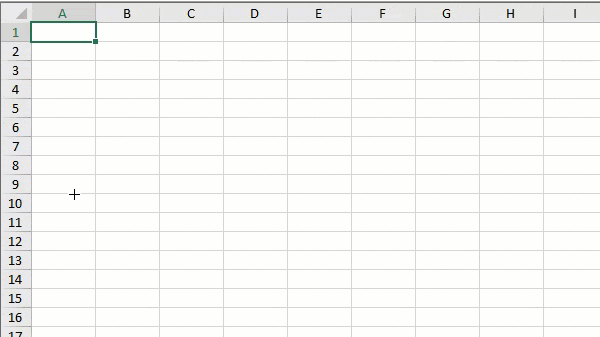

Users can create open and closed custom shapes using annotation mode options such as the Freeform shape and Freeform scribble.

• The Freeform Shape mode draws a shape that has both curved and straight segments.



• The Freeform Scribble mode draws a shape that looks like it was drawn with a pen by hand or to create smooth curves.



The freeform shape and freeform scribble modes show the following behavior:

• Pressing Enter finishes the drawing.
• Pressing ESC skips the current segment and finishes the drawing.
• In Freeform Shape, holding Shift makes the lines aligned by multiple(s) of 45 degrees.

The following code shows how to enable the freeform shape and freeform scribble modes:

// Annotation Mode - FreeForm
fpSpread1.StartAnnotationMode(FarPoint.Win.Spread.AnnotationMode.Freeform);

// Annotation Mode - Scribble
fpSpread1.StartAnnotationMode(FarPoint.Win.Spread.AnnotationMode.Scribble);

'Annotation Mode - FreeForm
FpSpread1.StartAnnotationMode(FarPoint.Win.Spread.AnnotationMode.Freeform)

'Annotation Mode - Scribble
FpSpread1.StartAnnotationMode(FarPoint.Win.Spread.AnnotationMode.Scribble)

Using Spread Designer

1. Enable EnhancedShapeEngine from the Spread property side pane.
2. Select the Insert menu.
3. Select the Shapes dropdown.
4. Select the freeform mode of choice.





5. Draw the shape on the sheet.
6. From the File menu choose Apply and Exit to apply your changes to the component and exit Spread Designer.

Supported Shortcut Keys

The following keyboard shortcuts can be used while working with shapes:
