    Working with the Formula Text Box
    In This Topic

    Setting up the Formula Text Box

    You can set up a floating formula bar that can be used to add formulas. The formula bar is similar to the formula editor available to the developer and has the appearance of a text box. The formula bar not only renders a list of calculation functions but also provides a visual method of selecting cell ranges for the formula.

    Floating formula bar

    In order to set up the formula bar at run time, you can use the FormulaTextBox class. You can also draw the formula text box on the form and assign it to Spread at design time. Select the formula text box icon in the Toolbox and drag it to the form. Select the formula text box verb and attach it to Spread.

    Formula bar at run time

    The AllowUserFormulas property allows the user to type formulas in the cell in the Spread control.

    If you set the AllowUserFormulas property to True, then the formulas that are typed in a cell will show up in the formula bar.

    Using the Formula Text Box

    To use the formula text box, type the equal sign (=) and then start typing the name of the formula. This brings up a list of functions that start with that letter. You can then type the left parenthesis and either select a block of cells by dragging the mouse over that range or type cell values by absolute or relative reference. The figure below shows the selection of a range of cells from A1 to B3.

    Example of Conditional Format

    Using Code

    Create the formula editor and attach it to the control.

    Example

    This example code creates the floating formula bar.

    C#
    Copy Code
    FarPoint.Win.Spread.FormulaTextBox editor = new FarPoint.Win.Spread.FormulaTextBox();
    editor.Location = new Point(0, 0);
    editor.Size = new Size(80, 20);
    this.Controls.Add(editor);
    editor.Attach(fpSpread1);
    // This line will disconnect the formula bar from the control
    // editor.Detach();

    VB
    Copy Code
    Dim editor As New FarPoint.Win.Spread.FormulaTextBox
    editor.Location = New Point(0, 0)
    editor.Size = New Size(80, 20)
    Controls.Add(editor)
    editor.Attach(fpSpread1)
    ‘ This line will disconnect the formula bar from the control
    ‘ editor.Detach()


    Using Intersect Formula and Mixed Reference Formula

    You can use the intersect formula and the mixed reference formula while working with formula text box in the spreadsheets.

    In order to create an intersect formula in a worksheet, users need to select or provide two cell ranges separated by spaces as parameters of the calculation function that is being used.

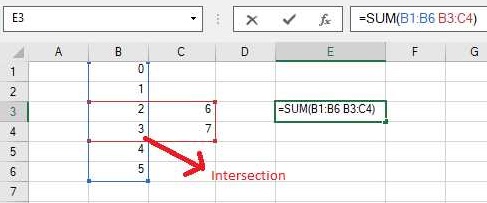

    An example screenshot shared below depicts the intersection formula used in a formula text box for SUM function containing two cell ranges - B1:B6 and B3:C4 separated by the space character. When the formula is calculated, it returns the evaluated sum of all the values appearing in the intersection area (an area where rows and columns intersect as highlighted in the image) of the two cell ranges.

    Example of Intersect Formula and Mixed Reference Formula

    A mixed reference formula refers to the combination of relative and absolute cell references (absolute column and relative row or absolute row and relative column) used in a worksheet. The absolute cell references are also known as fixed references and are represented by the cells with the dollar symbol ($) placed in front of them. The relative cell references change when the formula is dragged or copied across rows and columns in the worksheet.

    For more information on formulas, refer to Managing Formulas in Cells and the Formula Reference.

    Using Code

    You can use the intersect formula and the mixed reference formula in the formula text box in the spreadsheet.

    Example

    This example code shows how to work with intersect formula and mixed reference formula in the spreadsheet.

    C#
    Copy Code
    // Using intersect formula
    fpSpread1.Sheets[0].Cells[0, 1].Value = 0;
    fpSpread1.Sheets[0].Cells[1, 1].Value = 1;
    fpSpread1.Sheets[0].Cells[2, 1].Value = 2;
    fpSpread1.Sheets[0].Cells[3, 1].Value = 3;
    fpSpread1.Sheets[0].Cells[4, 1].Value = 4;
    fpSpread1.Sheets[0].Cells[5, 1].Value = 5;
    fpSpread1.Sheets[0].Cells[2, 2].Value = 6;
    fpSpread1.Sheets[0].Cells[3, 2].Value = 7;
    fpSpread1.Sheets[0].Cells[2, 4].Formula = "SUM(B1:B6 B3:C4)";

    // Using mixed reference formula
    fpSpread1.Sheets[0].Cells[5, 5].Formula = "SUM($B1, $B$2, B$3, B4)";

    VB
    Copy Code
    'Using intersect formula
    fpSpread1.Sheets(0).Cells(0, 1).Value = 0
    fpSpread1.Sheets(0).Cells(1, 1).Value = 1
    fpSpread1.Sheets(0).Cells(2, 1).Value = 2
    fpSpread1.Sheets(0).Cells(3, 1).Value = 3
    fpSpread1.Sheets(0).Cells(4, 1).Value = 4
    fpSpread1.Sheets(0).Cells(5, 1).Value = 5
    fpSpread1.Sheets(0).Cells(2, 2).Value = 6
    fpSpread1.Sheets(0).Cells(3, 2).Value = 7
    fpSpread1.Sheets(0).Cells(2, 4).Formula = "SUM(B1:B6 B3:C4)
    'Using mixed reference formula
    fpSpread1.Sheets(0).Cells(5, 5).Formula = "SUM($B1, $B$2, B$3, B4)"


    Selecting Table Formula using Structured References

    Spread Winforms provides support for inserting structured reference formulas in table cells. The structured reference formula uses keywords and the column name of the table to refer to cell ranges in the table.

    The components of a structured reference in a table formula are as follows:

    1. Table Name - A table name is a meaningful name that you provide to reference the actual table data (excluding the headers and totals row, if any).
    2. Column Specifier - This is derived from the column header and is enclosed in brackets. The column specifier references the column data (excluding the column header and total, if any).
    3. Special Item Specifier - This can be used to refer to specific portions of the table, such as the Totals row.
    4. Table specifier - This is the outer portion of the structured reference that is enclosed in square brackets following the table name.
    5. Structured Reference - A structured reference is the entire string beginning with the table name and ending with the table specifier.

    The following image depicts how to select table formula using structured references while working in Spread Designer.



    Selecting table formula using structured references
